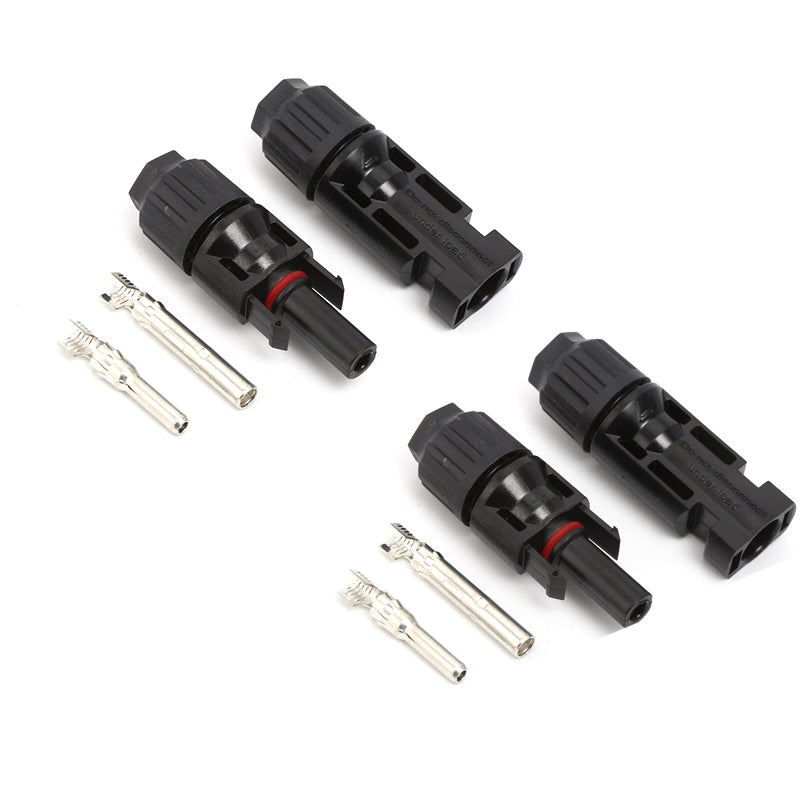

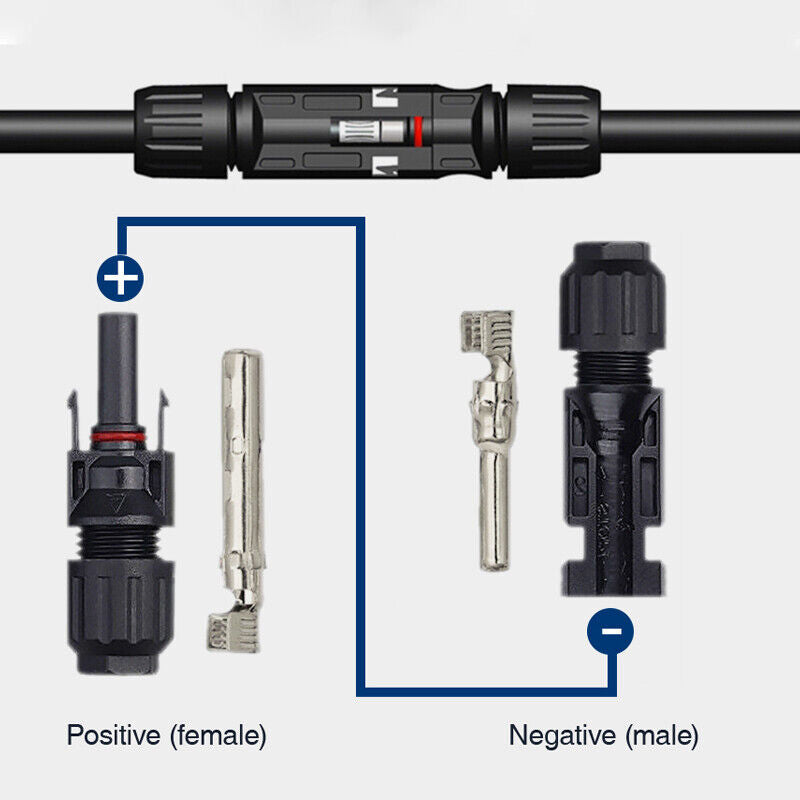

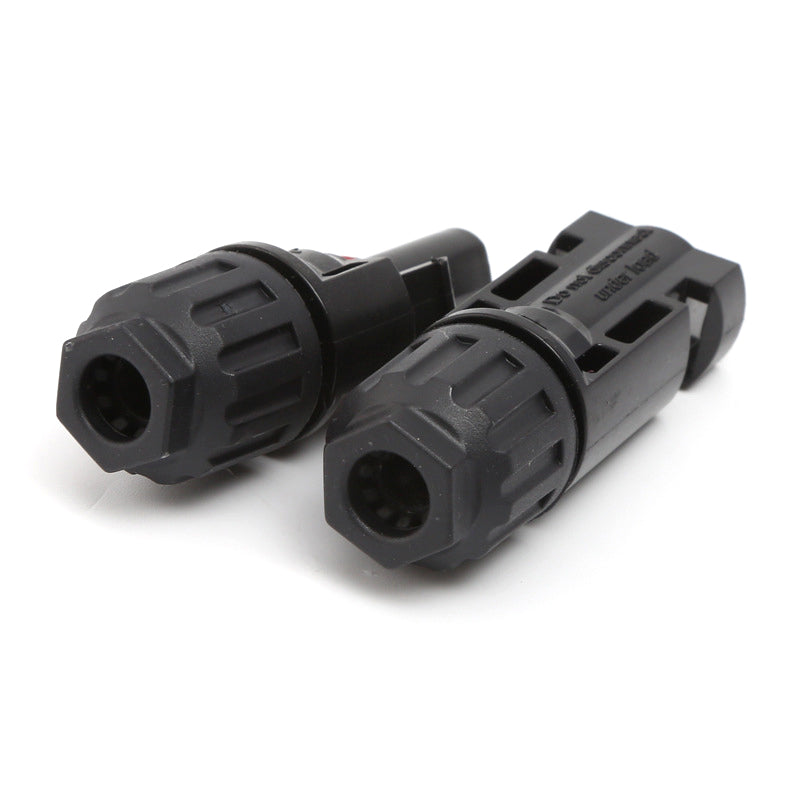

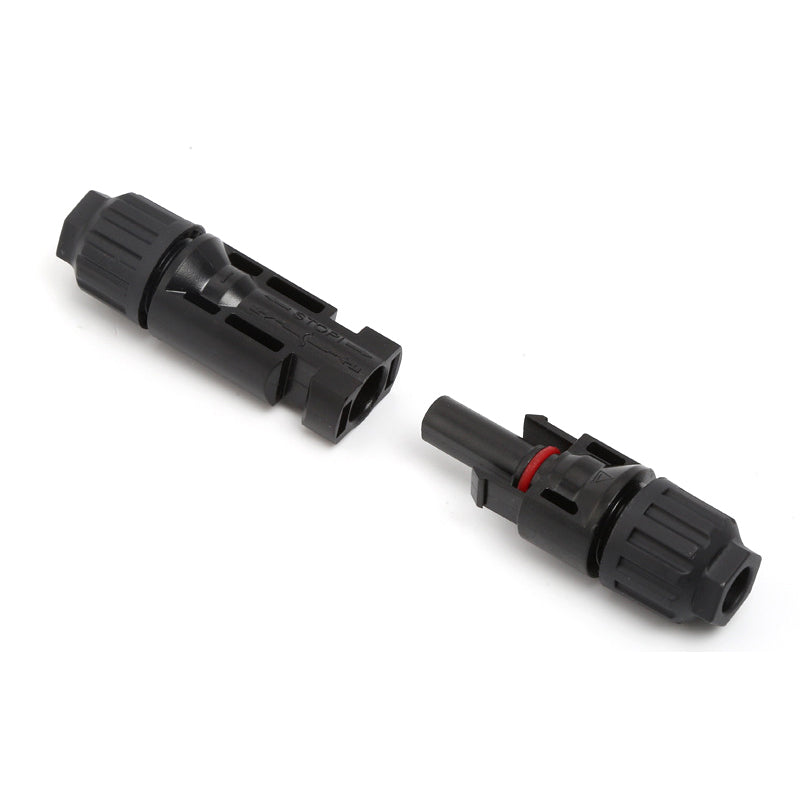

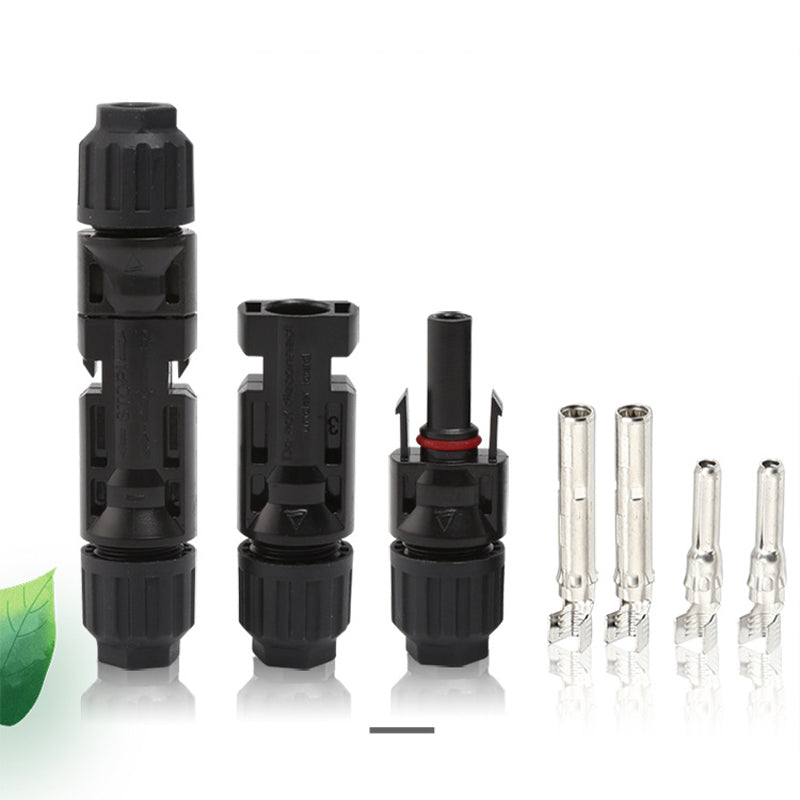

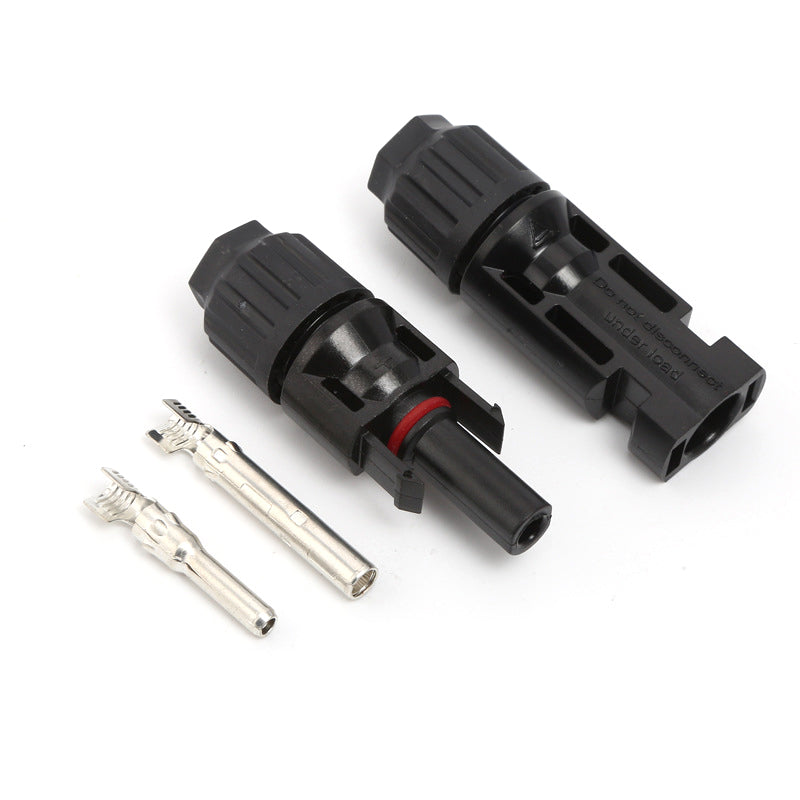

IP67 Solar Panel Connectors 30A Line Plug Socket Male Female

Enhance your solar panel system with premium IP67 solar panel connectors. These connectors ensure reliable and secure connections for optimal energy efficiency. Designed for durability, they are ideal for residential and commercial solar installations. Superior electrical performance guarantees that your solar panels operate at maximum potential, providing a dependable solution for renewable energy needs.

Features
High durability with robust PC insulation material.
Rated for 30A current and 1000V DC voltage.

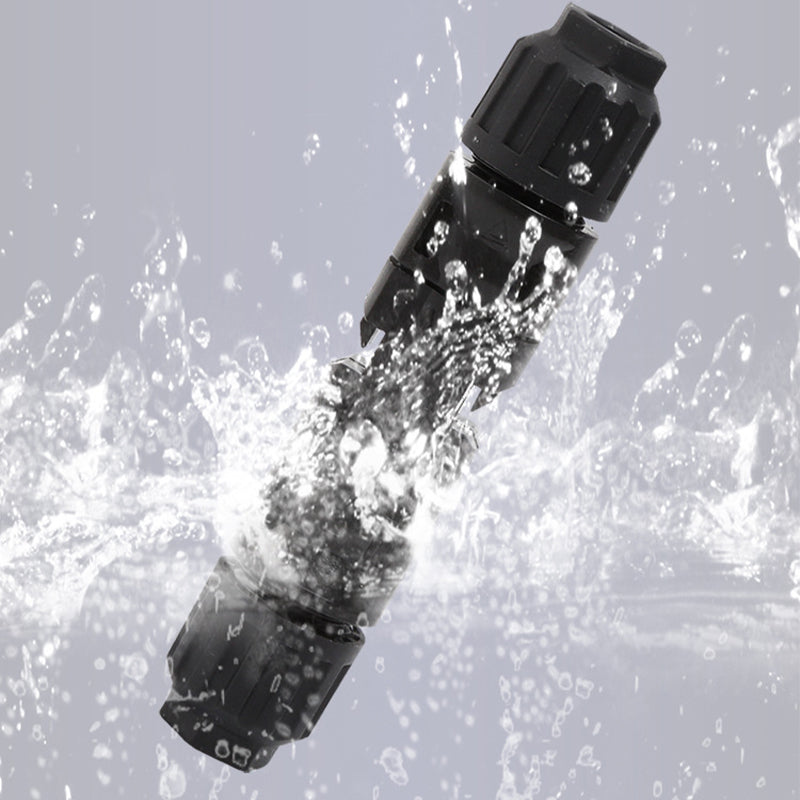

Waterproof IP67 protection against dust and water.
Operates efficiently in temperatures from -40°C to +125°C.
Flame-retardant UL94-V0 certification for fire safety.

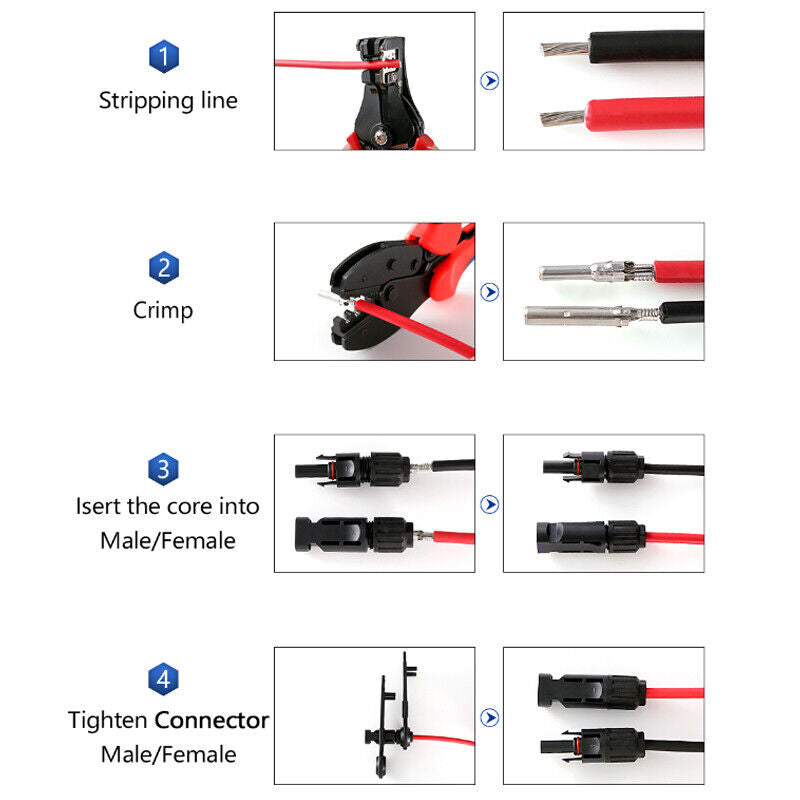

Crimping connection system allows quick and secure installation.
Compatible with cable cross-sections of 2.5mm² and 4mm².

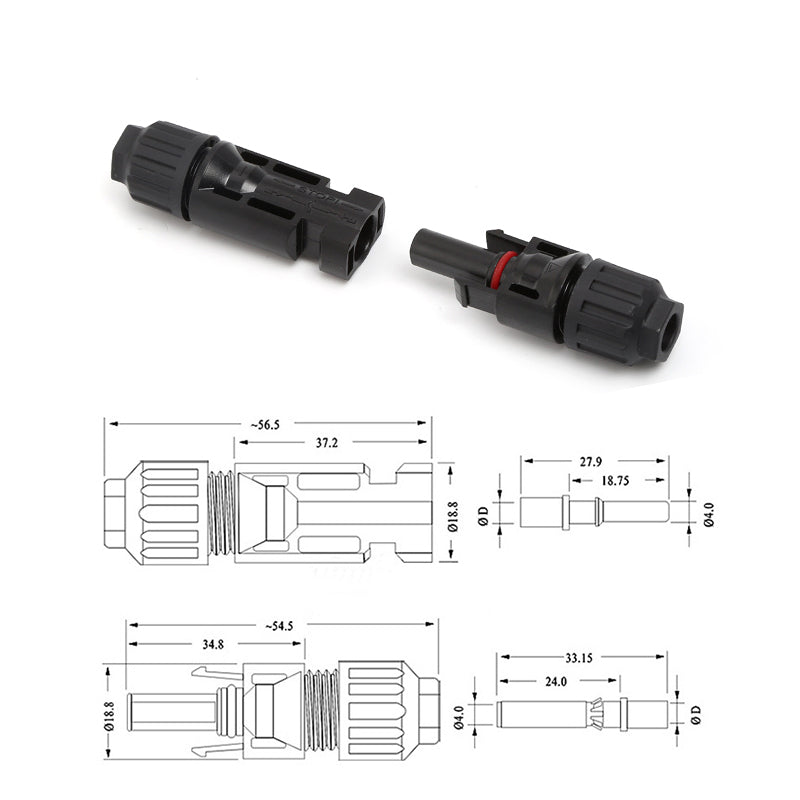

Specifications
Insulation Material: PC
Rated Current: 30A
Rated Voltage: 1000V DC
Test Voltage: DC6000V
Contact Resistance: 1mΩ
Waterproof Rating: IP67
Overvoltage Category: CATIII/2
Contact Material: Copper, Tin Plated
Insertion Force: Max. 50N
Withdrawal Force: Min. 50N
Operating Temperature Range: -40°C to +125°C
Flame Class: UL94-V0
Connection System: Crimping
Cable Cross-Section Compatibility: 2.5mm²/4mm²

Package Includes

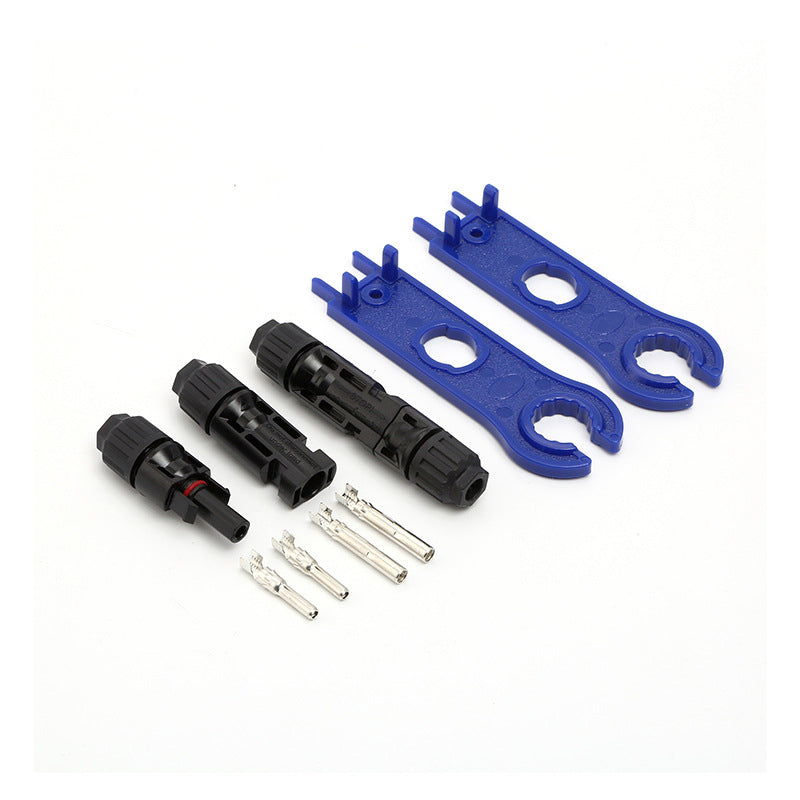

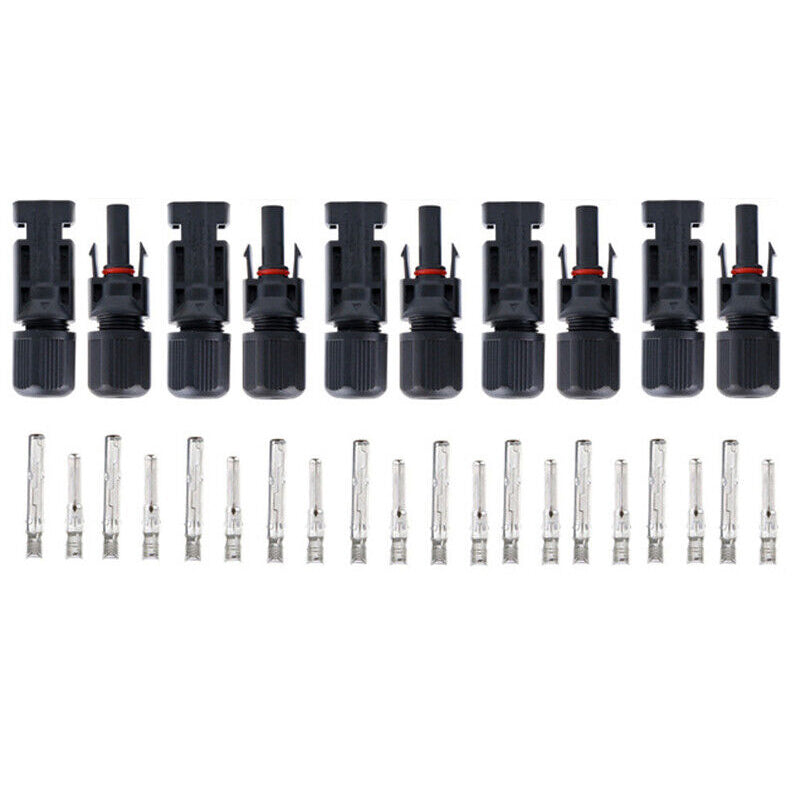

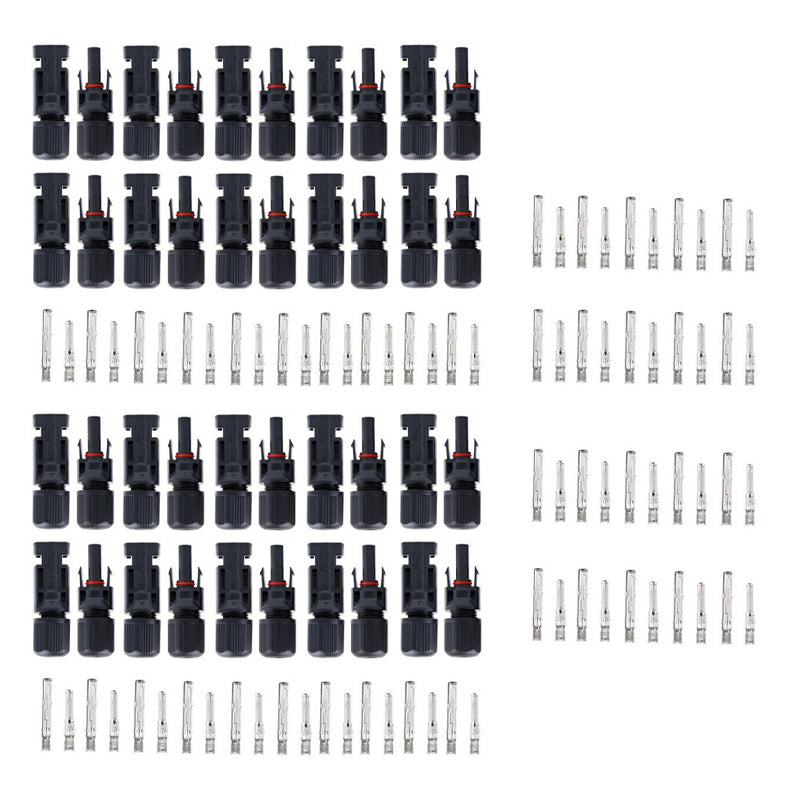

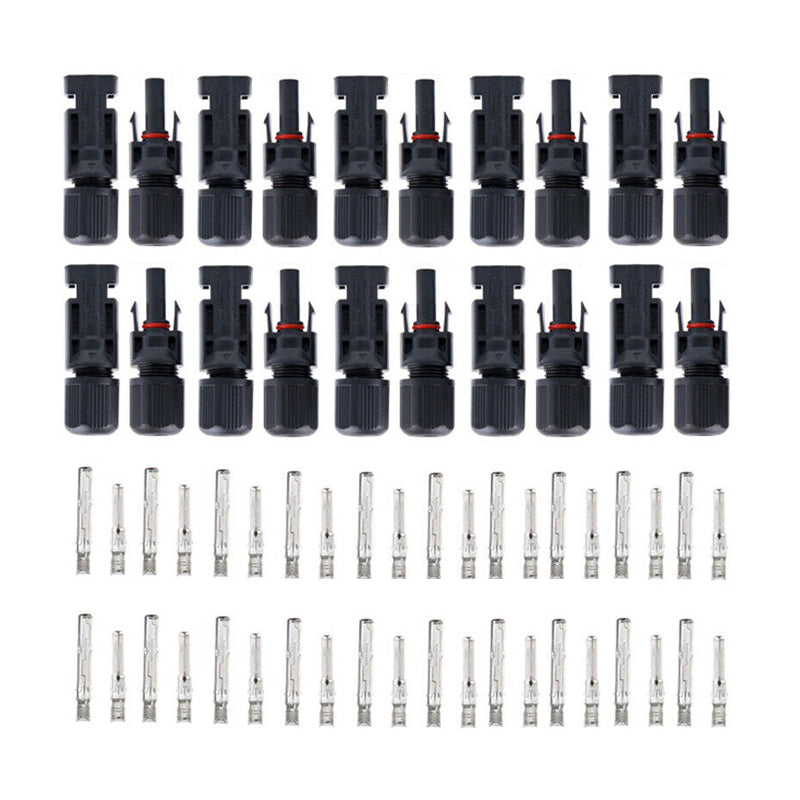

5/10/20 Pairs of Solar Panel Cable Connectors (depending on selection)

Notes
Slight colour variations may occur due to lighting and screens.
Measurements may vary slightly due to manual measurement.
Ensure connections are tightly secured and properly crimped.
Regularly inspect connectors for wear or damage in harsh environments.
Designed to deliver reliable power connections for efficient and safe solar energy systems.
